¶ Inkscape Addons
- Gcodetools
- AxiDraw

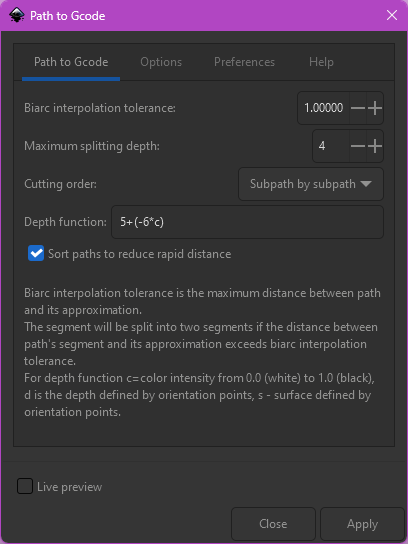

¶ Export Settings
¶ Custom Header
Put a file called header into the output directory:
G21 (units militmeter)
G28 (auto home)
G01 Z25 F400.0 (go up)
G01 X60 Y40 Z25 F3000 (go to initial position)
¶ Default Tool
Change the default tool:
- Set
feedto something higher e.g.3000 - Set
penetration feedto something higher e.g.400 - Set
depth stepto something higher e.g.10
The settings feed and penetration feed control the overal drawing speed. This is important for 3D printing or CNC milling, but we can basically draw as fast as the steppers will go. Just don't take it too far.
More importantly depth step will control how much the drill will penetrate the objeckt. This is very important for CNC machines, but this option might cause that your picture is drawn multiple times. Maybe ac ouple of times in thin air until it reaches the paper to finally draw something. We basically want to disable this feature, just increase this number beyond your safe travel height.
